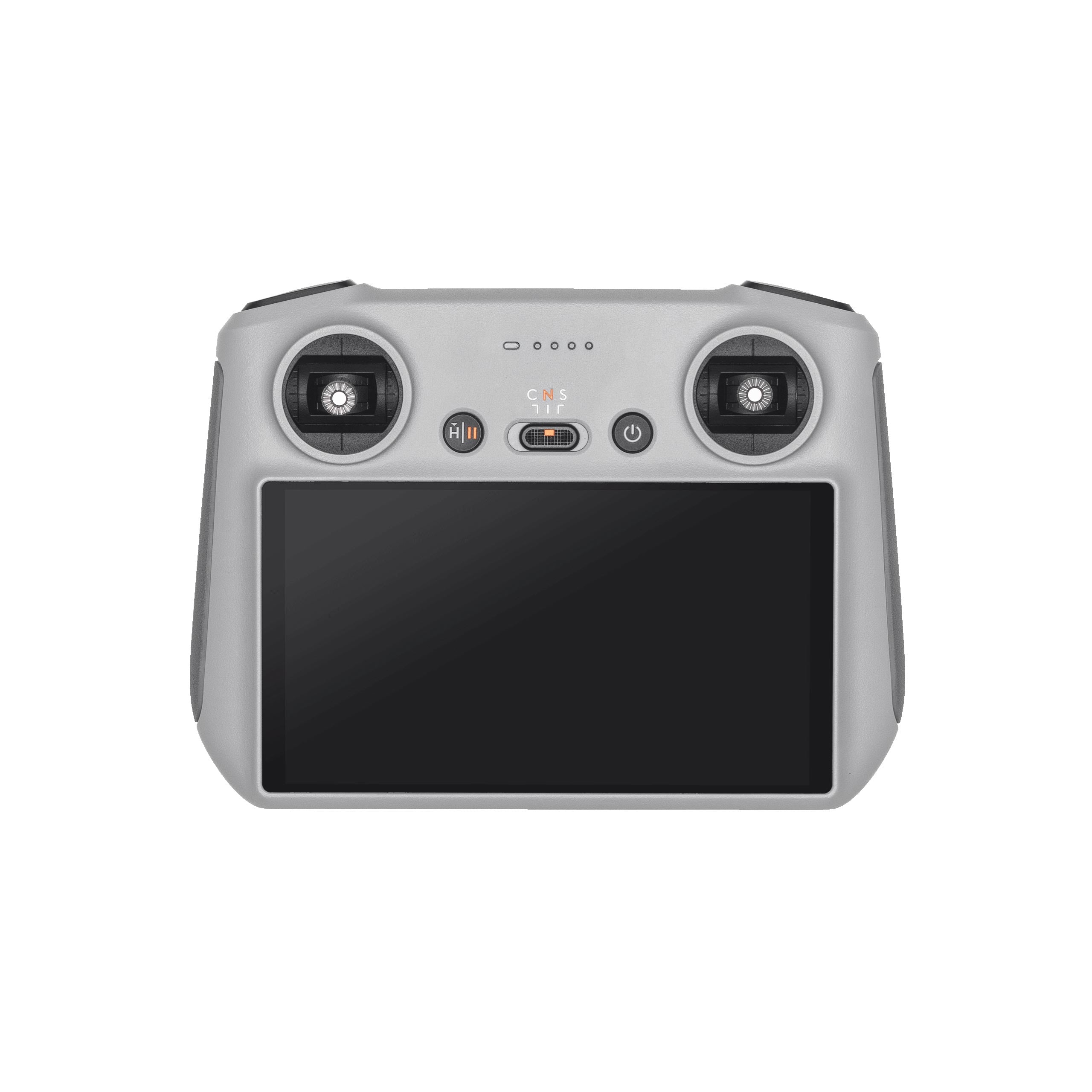

he DJI RC Remote Controller is a remote controller that delivers an exceptional operating experience for DJI drones. With a lightweight body, FHD display, and ultra-long battery life, it also features new dual-spring control sticks for more comfortable flying and supports the advanced DJI O3+ video transmission technology. With its powerful functionality, aerial creation is more convenient than ever.
Features:
- 15km O3+ Video Transmission
- 390g Lightweight Body
- 5.5-inch FHD Display
- 4-hour Ultra-Long Operating Time
- Dual-Spring Control Sticks
- USB Type-C Charging Port, microSD Slot
VIDEO TRANSMISSION TECHNOLOGYWhen used with drones that support O3+ transmission, like DJI Mavic 3, DJI RC can provide low-latency HD 1080p/60fps live feeds with a max transmission range of 15 km for smoother control and safer flight.LIGHT, COMPACT, POWERFULThanks to its innovative design, the antennas of DJI RC pack excellent performance in a smaller body that is built into the RC itself. The new hardware design further reduces the size of DJI RC, resulting in a weight of just 390 grams. The built-in 5.5-inch FHD screen supports long-lasting brightness of up to 700 nits.4-HOUR ULTRA-LONG RUNTIMEDJI RC’s new design enables use for up to four hours on a full charge. That gives you enough battery to shoot at multiple locations on a single charge.HIGHLIGHTS IN DETAILDJI RC is equipped with dual-spring control sticks for a smoother and more precise control experience. It comes with commonly used ports convenient for charging and a microSD card slot.GET STARTED FAST TO SEIZE ANY MOMENTWith a built-in screen, DJI RC can directly link with your drone after powering on without connecting to a smartphone, allowing you to start shooting right away.Technical Specs:
Video TransmissionVideo Transmission System:
| DJI RC adopts OcuSync HD video transmission technology. When connected to other compatible drone models, DJI RC will switch to the corresponding video transmission technology.
With different aircraft hardware, the corresponding video transmission specifications are as follows:
DJI Mini 3 Pro: O3
DJI Mavic 3: O3+
DJI Mavic 3 Cine: O3+ |
| Max. Transmission Distance (unobstructed, free of interference): | DJI Mini 3 Pro: 12 km (FCC); 8 km (CE/SRRC/MIC)
DJI Mavic 3: 15 km (FCC); 8 km (CE/SRRC/MIC)
DJI Mavic 3 Cine: 15 km (FCC); 8 km (CE/SRRC/MIC) |
| Operating Frequency: | 2.400-2.4835 GHz; 5.725-5.850 GHz |
| Antennas: | 2 antennas, 1T2R |
| Transmitter Power (EIRP): | 2.400-2.4835 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE
|
Wi-Fi| Protocol: | 802.11 a/b/g/n |
| Operating Frequency: | 2.400-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz |
Transmitter Power (EIRP):
| 2.400-2.4835 GHz: <23 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.150-5.250 GHz: <23 dBm (FCC/CE/SRRC/MIC)
5.725-5.850 GHz: <23 dBm (FCC/SRRC), <14 dBm (CE) |
Bluetooth| Protocol: | Bluetooth 4.2 |
| Operating Frequency: | 2.400-2.4835 GHz |
| Transmitter Power (EIRP): | < 10 dBm |
Screen| Resolution: | 1920×1080 |
| Size: | 5.5 inches |
| Frame Rate: | 60fps |
| Brightness: | 700 nits |
| Touch Control: | 10-point multi-touch |
General SpecsBattery:
| Li-ion (5,200 mAh @ 3.6 V) |
| Charging Type: | It is recommended to use a charger rated 5 V/2 A or above. |
| Rated Power: | 4.5 W |
| Storage Capacity: | Expandable (with microSD card) |
| Charging Time: | 1.5 hours (with 5 V/3 A charger)
|
| Operating Time: | 4 hours |
| Video Output Port: | N/A |
| Operating Temperature: | -10° to 40° C (14° to 104° F) |
| Storage Temperature | Within one month: -30° to 60° C (-22° to 140° F)
One to three months: -30° to 45° C (-22° to 113° F)
Three to six months: -30° to 35° C (-22° to 95° F)
More than six months: -30° to 25° C (-22° to 77° F) |
| Charging Temperature: | 5° to 40° C (41° to 104° F |
| Supported Aircraft Models: | DJI Mini 3 Pro
DJI Mavic 3
DJI Mavic 3 Cine |
| GNSS: | GPS + BeiDou + Galileo |
| Dimensions (L×W×H): | Without control sticks: 168.4×123.7×46.2 mm
With control sticks: 168.4×123.7×62.7 mm |
| Weight: | Approx. 390 g |
| Model: | RM330 |
Video Transmission:Video Transmission System:
| DJI RC adopts OcuSync HD video transmission technology. When connected to other compatible drone models, DJI RC will switch to the corresponding video transmission technology.
With different aircraft hardware, the corresponding video transmission specifications are as follows:
DJI Mini 3 Pro: O3
DJI Mavic 3: O3+
DJI Mavic 3 Cine: O3+ |
| Max. Transmission Distance (unobstructed, free of interference): | DJI Mini 3 Pro: 12 km (FCC); 8 km (CE/SRRC/MIC)
DJI Mavic 3: 15 km (FCC); 8 km (CE/SRRC/MIC)
DJI Mavic 3 Cine: 15 km (FCC); 8 km (CE/SRRC/MIC) |
| Operating Frequency: | 2.400-2.4835 GHz; 5.725-5.850 GHz |
| Antennas: | 2 antennas, 1T2R |
| Transmitter Power (EIRP): | 2.400-2.4835 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE
|
Storage
| Supported SD Cards: | UHS-I Speed Grade 3 rating microSD card or above |
Compatible with:DJI Mavic 3DJI Mavic 3 CineDJI Mini 3 ProIn the box:1x DJI RC Remote Controller1x DJI RC Spare Control Sticks (pair)1x Type-C to Type-C PD Cable
